Injin Nema 17 (42mm) mai haɗakar stepper, bipolar, mai jagora 4, sukurori na ACME, Kusurwar Mataki 1.8°, tsawon rai, aiki mai girma.
Injin Nema 17 (42mm) mai haɗakar stepper, bipolar, mai jagora 4, sukurori na ACME, Kusurwar Mataki 1.8°, tsawon rai, aiki mai girma.
Wannan injin stepper na 42mm mai haɗin gwiwa yana samuwa a nau'i uku: injin da ke tuƙi a waje, injin da ke tafe a cikin axis, da kuma injin da ke tafe a cikin axis. Za ka iya zaɓa bisa ga takamaiman buƙatunka.
Bayani
| Sunan Samfuri | Injinan stepper masu haɗin gwiwa 42mm |
| Samfuri | VSM42HSM |
| Nau'i | Injinan stepper masu haɗin gwiwa |
| Kusurwar Mataki | 1.8° |
| Wutar lantarki (V) | 2/2.6/ 3.3 |
| Na yanzu (A) | 1.5/2.5 |
| Juriya (Ohms) | 0.8/1.8/2.2 |
| Inductance (mH) | 1.8/2.8/4.6 |
| Wayoyin Gubar | 4 |
| Tsawon Mota (mm) | 34/48/46 |
| Zafin Yanayi | -20℃ ~ +50℃ |
| Ƙara Zafin Jiki | Mafi girman 80K. |
| Ƙarfin Dielectric | Matsakaicin ƙarfin lantarki na 1mA @ 500V, 1KHz, Sec 1 |
| Juriyar Rufi | Minti 100MΩ @500Vdc |
Takaddun shaida
Sigogi na Lantarki:
| Girman Mota | Wutar lantarki /Mataki (V) | Na yanzu /Mataki (A) | Juriya /Mataki (Ω) | Inductance /Mataki (mH) | Adadin Wayoyin Gubar | Rotor Inertia (g.cm)2) | Nauyin Mota (g) | Tsawon Mota L (mm) |
| 42 | 2.6 | 1.5 | 1.8 | 2.6 | 4 | 35 | 250 | 34 |
| 42 | 3.3 | 1.5 | 2.2 | 4.6 | 4 | 55 | 290 | 40 |
| 42 | 2 | 2.5 | 0.8 | 1.8 | 4 | 70 | 385 | 48 |
| 42 | 2.5 | 2.5 | 1 | 2.8 | 4 | 105 | 450 | 60 |
Bayanan sikirin gubar da sigogin aiki
| diamita (mm) | Jagora (mm) | Mataki (mm) | Kashe ƙarfin kulle kai (N) |
| 6.35 | 1.27 | 0.00635 | 150 |
| 6.35 | 3.175 | 0.015875 | 40 |
| 6.35 | 6.35 | 0.03175 | 15 |
| 6.35 | 12.7 | 0.0635 | 3 |
| 6.35 | 25.4 | 0.127 | 0 |
Lura: Don ƙarin cikakkun bayanai game da sukurori na gubar, tuntuɓe mu.
Tsarin zane na motar waje na misali na VSM42HSM:
Bayanan kula:
Za a iya keɓance tsawon sukurori na gubar
Injin da aka keɓance yana da amfani a ƙarshen sukurori na gubar
Tsarin zane na injin stepper na 42mm na hybrid
Bayanan kula:
Injin da aka keɓance yana da amfani a ƙarshen sukurori na gubar
| Ciwon S (mm) | Girman A (mm) | Girman B (mm) | |||
| L = 34 | L = 40 | L = 48 | L = 60 | ||
| 12.7 | 20.6 | 6.4 | 0.4 | 0 | 0 |
| 19.1 | 27 | 12.8 | 6.8 | 0 | 0 |
| 25.4 | 33.3 | 19.1 | 13.1 | 5.1 | 0 |
| 31.8 | 39.7 | 25.5 | 19.5 | 11.5 | 0 |
| 38.1 | 46 | 31.8 | 25.8 | 17.8 | 5.8 |
| 50.8 | 58.7 | 44.5 | 38.5 | 30.5 | 18.5 |
| 63.5 | 71.4 | 57.2 | 51.2 | 43.2 | 31.2 |
Tsarin Tsarin Mota Mai Haɗaka na 42mm Stepper
Bayanan kula:
Za a iya keɓance tsawon sukurori na gubar
Injin da aka keɓance yana da amfani a ƙarshen sukurori na gubar
Gudun da lanƙwasa:
Motar Chopper mai tsawon mita 34mm mai jerin 42
Mitar bugun jini na yanzu 100% da lanƙwasa (Φ6.35mm sukurori na gubar)
Motar Chopper mai tsawon mita 40mm mai jerin 42
Mitar bugun jini na yanzu 100% da lanƙwasa (Φ6.35mm sukurori na gubar)
| Gubar (mm) | Gudun layi (mm/s) | ||||||||
| 1.27 | 1.27 | 2.54 | 3.81 | 5.08 | 6.35 | 7.62 | 8.89 | 10.16 | 11.43 |
| 3.175 | 3.175 | 6.35 | 9.525 | 12.7 | 15.875 | 19.05 | 22.225 | 25.4 | 28.575 |
| 6.35 | 6.35 | 12.7 | 19.05 | 25.4 | 31.75 | 38.1 | 44.45 | 50.8 | 57.15 |
| 12.7 | 12.7 | 25.4 | 38.1 | 50.8 | 63.5 | 76.2 | 88.9 | 101.6 | 114.3 |
| 25.4 | 25.4 | 50.8 | 76.2 | 101.6 | 127 | 152.4 | 177.8 | 203.2 | 228.6 |
Yanayin gwaji:
Tukin Chopper, babu tsalle-tsalle, rabin micro-stepping, ƙarfin tuƙi 40V

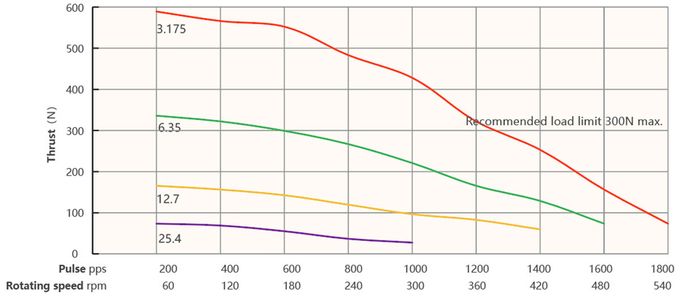

Motar Chopper mai tsawon mota 48mm mai jerin 42
Mitar bugun jini na yanzu 100% da lanƙwasa (Φ6.35mm sukurori na gubar)

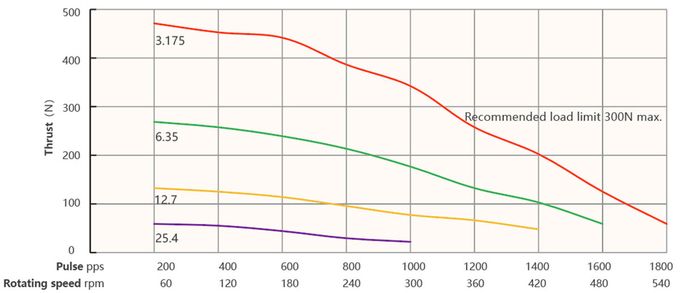

Motar Chopper mai tsawon mita 60mm mai jerin 42
Mitar bugun jini na yanzu 100% da lanƙwasa (Φ6.35mm sukurori na gubar)
| Gubar (mm) | Gudun layi (mm/s) | ||||||||
| 1.27 | 1.27 | 2.54 | 3.81 | 5.08 | 6.35 | 7.62 | 8.89 | 10.16 | 11.43 |
| 3.175 | 3.175 | 6.35 | 9.525 | 12.7 | 15.875 | 19.05 | 22.225 | 25.4 | 28.575 |
| 6.35 | 6.35 | 12.7 | 19.05 | 25.4 | 31.75 | 38.1 | 44.45 | 50.8 | 57.15 |
| 12.7 | 12.7 | 25.4 | 38.1 | 50.8 | 63.5 | 76.2 | 88.9 | 101.6 | 114.3 |
| 25.4 | 25.4 | 50.8 | 76.2 | 101.6 | 127 | 152.4 | 177.8 | 203.2 | 228.6 |
Yanayin gwaji:
Tukin Chopper, babu tsalle-tsalle, rabin micro-stepping, ƙarfin tuƙi 40V
Yankunan aikace-aikace
Kayan Aiki na Atomatik:Ana amfani da injinan stepper na 42mm masu haɗaka sosai a cikin kayan aiki iri-iri na sarrafa kansa, gami da injinan marufi na atomatik, layin samarwa na atomatik, kayan aikin injin, da kayan bugawa. Suna ba da ingantaccen sarrafa matsayi da kuma ƙarfin juyi mai yawa don biyan buƙatun kayan aikin sarrafa kansa don daidaiton motsi da aminci.
Firintocin 3D:Injinan stepper masu haɗin gwiwa na 42mm suna taka muhimmiyar rawa a cikin firintocin 3D. Ana amfani da su don jagorantar kan bugawa don sarrafa matsayi mai kyau da kuma cimma ayyukan bugawa daidai. Waɗannan injinan suna ba da daidaiton matsayi da aminci, wanda ke taimakawa wajen inganta aiki da ingancin bugawa na firintocin 3D.
Na'urorin lafiya:Ana amfani da injinan stepper masu haɗin gwiwa na 42 mm sosai a cikin na'urorin likitanci. Misali, a cikin kayan aikin daukar hoto na likitanci (misali, na'urorin daukar hoto na CT, na'urorin X-ray), ana amfani da waɗannan injinan don sarrafa dandamali masu juyawa da sassan motsi. Bugu da ƙari, ana amfani da su don daidaita matsayi a cikin na'urorin likitanci kamar robot na tiyata, sirinji, da sarrafa samfura ta atomatik.
Fasahar Robobi:Injinan stepper masu haɗin gwiwa na 42 mm suna taka muhimmiyar rawa a cikin na'urorin robot. Ana iya amfani da su don tuƙa haɗin robot, suna ba da ingantaccen iko a matsayi da fitarwa mai ƙarfi. Aikace-aikacen robot sun haɗa da robot na masana'antu, robot na sabis, da robot na likita.
Motoci:Motocin stepper masu haɗin gwiwa na 42mm suna da amfani a cikin kayan aikin mota. Ana amfani da su a cikin tsarin sarrafawa daban-daban a cikin motoci, kamar daidaita kujerun mota, ɗagawa da saukar da taga, da kuma daidaita madubin baya. Waɗannan injinan suna ba da ingantaccen iko a matsayi da ingantaccen aiki don tabbatar da ingantaccen aikin kayan aikin mota.
Kayan Lantarki na Gida Mai Wayo da Masu Amfani:Ana amfani da injinan stepper masu haɗin gwiwa na 42mm a cikin na'urorin lantarki na gida da na masu amfani da kayayyaki. Ana iya amfani da su a cikin na'urori kamar makullan ƙofa masu wayo, kawunan kyamara, labule masu wayo, masu tsabtace injin robot, da sauransu don samar da ingantattun ayyukan sarrafa matsayi da motsi.
Baya ga aikace-aikacen da ke sama, ana iya amfani da injinan stepper masu haɗin gwiwa na 42 mm a cikin kayan aikin yadi, tsarin sa ido kan tsaro, sarrafa hasken mataki, da sauran wurare waɗanda ke buƙatar daidaitaccen sarrafa matsayi da ingantaccen aiki. Gabaɗaya, injinan stepper masu haɗin gwiwa na 42mm suna da nau'ikan aikace-aikace iri-iri a masana'antu da yawa.
Riba
Juyin juyi a Ƙananan Sauri:Motocin stepper masu haɗin gwiwa na 42mm suna nuna kyakkyawan aikin juyi a ƙananan gudu. Suna iya samar da juyi mai riƙewa mai ƙarfi, wanda ke ba su damar farawa da aiki cikin sauƙi ko da a ƙananan gudu. Wannan halayyar ta sa su dace da aikace-aikacen da ke buƙatar ingantaccen iko da motsi a hankali, kamar na'urorin robot, kayan aiki na atomatik, da na'urorin likitanci.
Daidaiton Matsayi:Waɗannan injinan suna ba da daidaiton matsayi mai kyau. Tare da ƙudurin matakansu masu kyau, suna iya cimma daidaiton matsayi da kuma daidaitaccen sarrafa motsi. Wannan yana da mahimmanci a aikace-aikacen da ke buƙatar daidaiton matsayi, kamar injunan CNC, firintocin 3D, da tsarin ɗauka da sanyawa.
Ƙarfin Kulle Kai:Injinan stepper masu haɗaka suna da ikon kulle kansu idan ba a kunna na'urorin ba. Wannan yana nufin cewa za su iya riƙe matsayinsu ba tare da amfani da wutar lantarki ba, wanda hakan yana da amfani a aikace inda ake buƙatar riƙe matsayi ba tare da wutar lantarki ba, kamar a cikin hannun robot ko masu sanya matsayi.
Inganci Mai Inganci:Injinan stepper masu haɗin gwiwa na 42mm suna ba da mafita mai araha ga aikace-aikace da yawa. Idan aka kwatanta da sauran nau'ikan injina, kamar injinan servo, gabaɗaya sun fi araha. Bugu da ƙari, sauƙin tsarin sarrafa su da rashin na'urori masu auna amsawa suna taimakawa wajen ingancinsu.
Faɗin kewayon saurin aiki:Waɗannan injinan suna iya aiki a wurare daban-daban, daga ƙananan gudu zuwa manyan gudu. Suna ba da kyakkyawan sarrafa gudu kuma suna iya cimma saurin gudu da raguwa cikin sauƙi. Wannan sassauci a sarrafa gudu yana sa su dace da aikace-aikace tare da buƙatun gudu daban-daban.
Ƙaramin Girma:Siffar siffa ta 42mm tana wakiltar ƙaramin girman injin stepper. Wannan yana sauƙaƙa haɗawa cikin aikace-aikace ko kayan aiki waɗanda ke buƙatar ƙira mai sauƙi da sauƙi.
Aminci da Tsawon Rai:An san injinan stepper masu haɗaka saboda aminci da dorewarsu. An ƙera su don su ci gaba da aiki na dogon lokaci, ba tare da buƙatar kulawa mai yawa ba.
Bukatun Zaɓin Mota:
► Hanyar motsi/hawa
► Bukatun Load
► Bukatun bugun jini
► Bukatun kayan aiki na ƙarshe
► Bukatun Daidaito
► Bukatun Ra'ayoyin Mai Rubutawa
► Bukatun Gyara da Hannu
► Bukatun Muhalli
